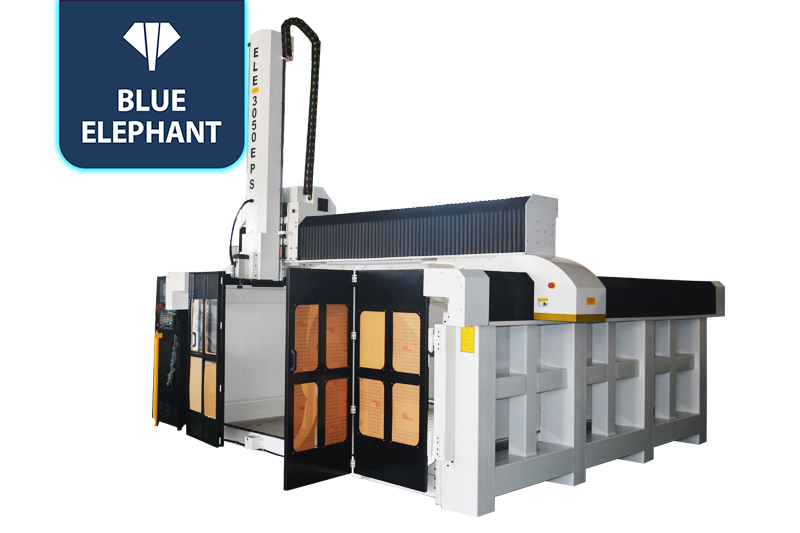

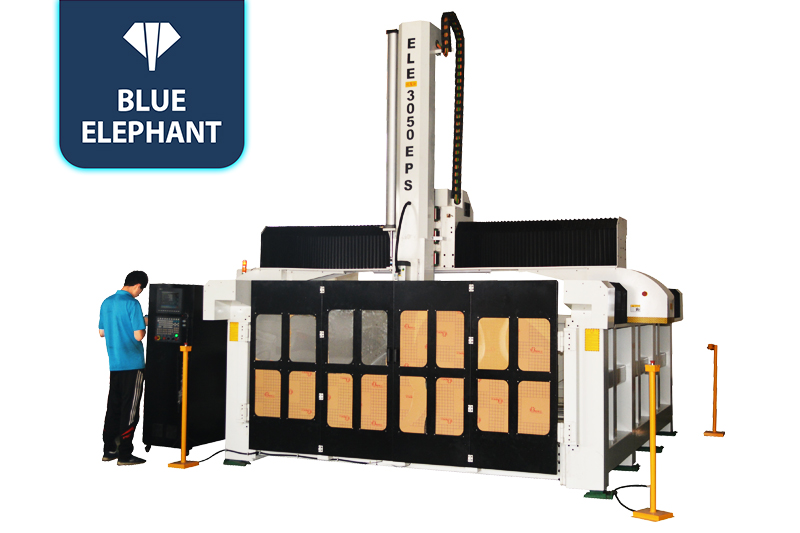

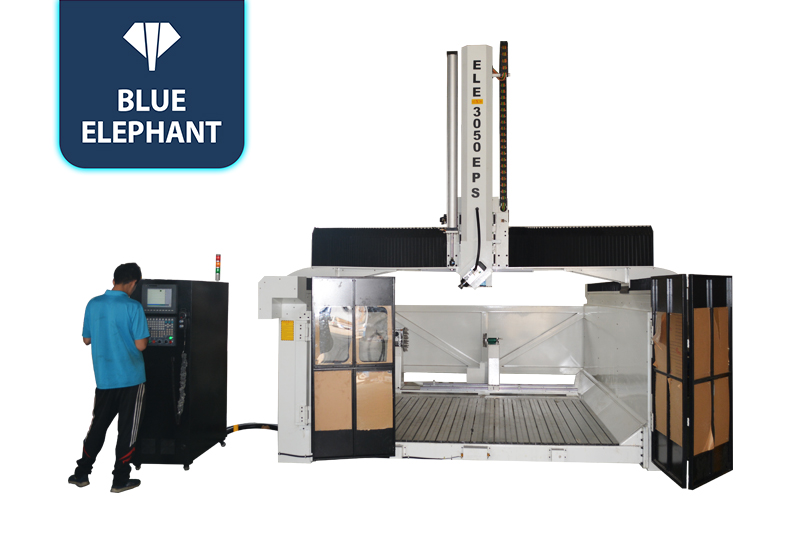

EPS Styrofoam 5 Axis C and C Router for Price

☆The machine has a larger worktable and a higher Z-axis for higher machining efficiency.

Get Details & Prices

CNC Router Machines Video

Get More Videos

features

Z-axis height and overall working size can be customized.
The cycloid pinwheel precision reducer has high transmission accuracy and can swing within the range of -90° to +90°.

Parameters

Model	ELECNC3050 EPS
X,Y axis travel	30005000mm, option: 15003000mm; 21003000mm; 21004000mm, etc
Z axis travel	800mm, option: 1100mm, 1200mm,1000mm, etc
Spindle type	6kw HSD air cooling spindle
Inverter type	7.5kw Delta inverter
The 4^thaxis	cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree
Control system	SYNTEC 60WE controller
Driving system	850W Japan Yaskawa servo motor and 1kw Yaskawa driver
Reducer	Japan Shimpo Reducer
Machine structure	Heavy duty body with quenching treatment
Work table	T-Slot & aluminum work table
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw

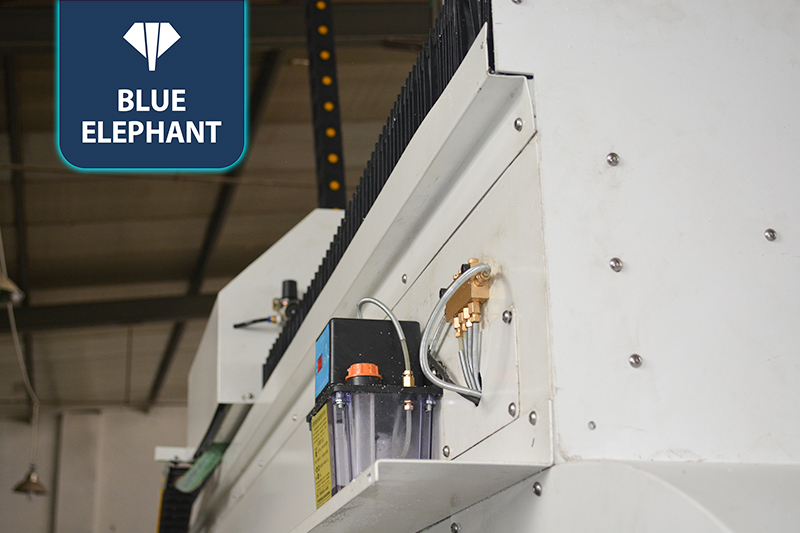

Lubrication system	automatic lubrication system
Tool calibration	Autotool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam / Aspire,etc
Command language	G Code & M Code
Traveling speed	60m/min
Working speed	0-20m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.03mm
Working air pressure	0.8mpa
Rotary device	200mm rotary device
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Get More Parameters

Application

Mold industry: This machine can engrave all kinds of large non-metal molds. It is also suitable for precision manufacturing of casting wooden molds, food molds (such as moon cake molds) and other molds.
Musical instrument industry: This machine can also engrave large 3D curved musical instruments and contour cutting.
