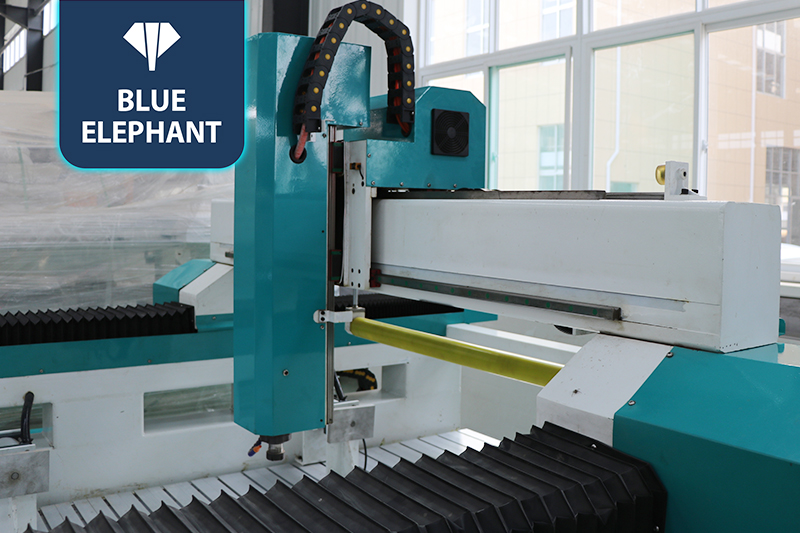

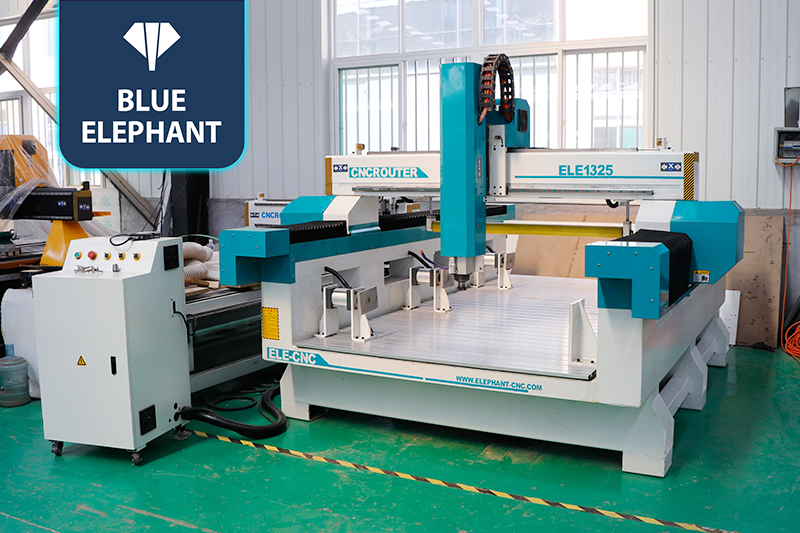

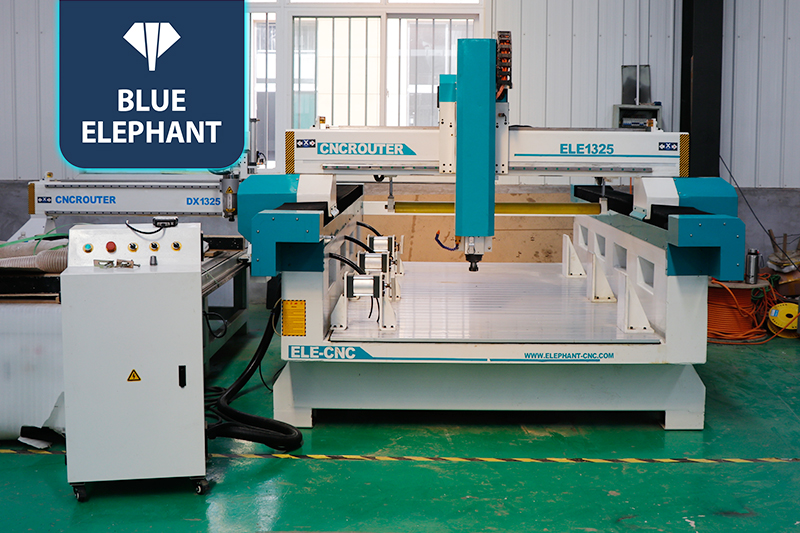

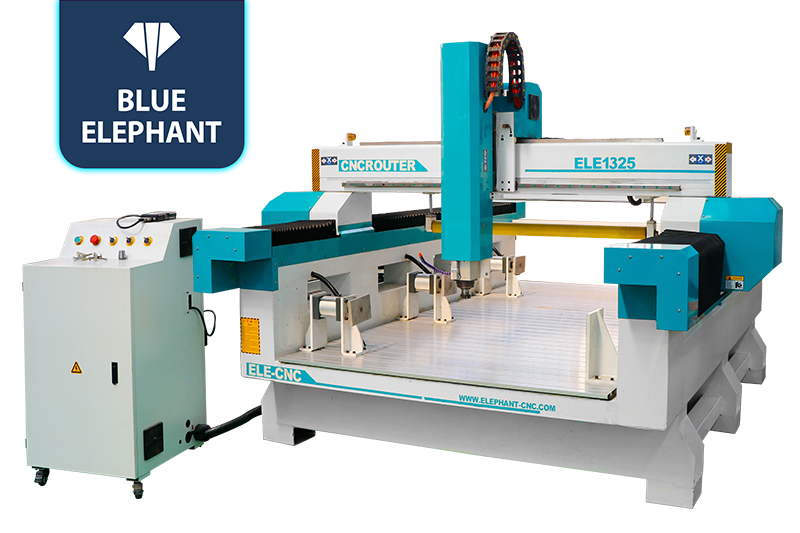

Buy 3D Foam CNC Carving Machine with Press Roller
☆Foam engraving machine can engrave all kinds of large non-metal molds. It is also suitable for precision manufacturing of casting wooden molds, food molds (such as moon cake molds), and other molds.
CNC Router Machines Video
Parameters
| Model | ELECNC1325 EPS |
| X,Y axis travel | 1300*2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 500mm, option: 600mm, 700mm, 1000mm, etc |
| Spindle type | 6kw HSD Italy air cooling spindle |
| Inverter type | 7.5kw Delta inverter |
| Control system | DSP A11 controller |
| Driving system | 850W leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Slot & aluminum work table |
| Positioning cylinder | 4 pcs cylinder |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam / Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Mold industry: This machine can engrave all kinds of large non-metal molds. It is also suitable for precision manufacturing of casting wooden molds, food molds (such as moon cake molds) and other molds.
Musical instrument industry: This machine can also engrave large 3D curved musical instruments and contour cutting.
