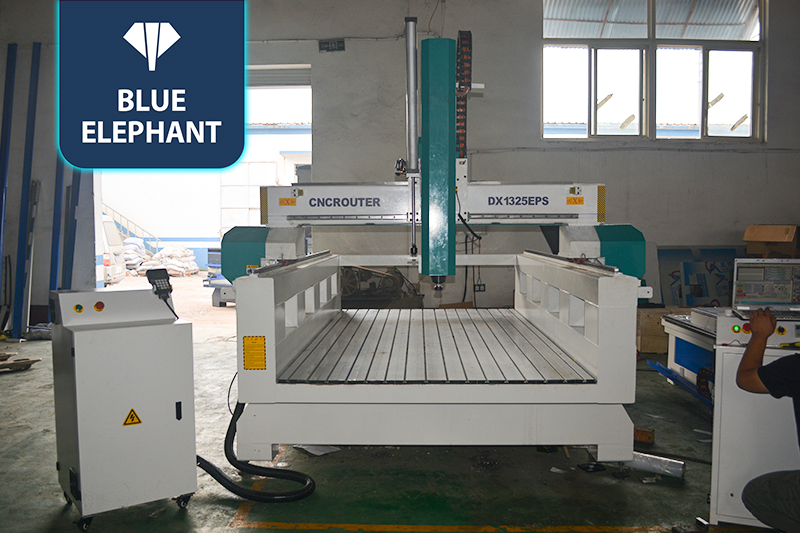

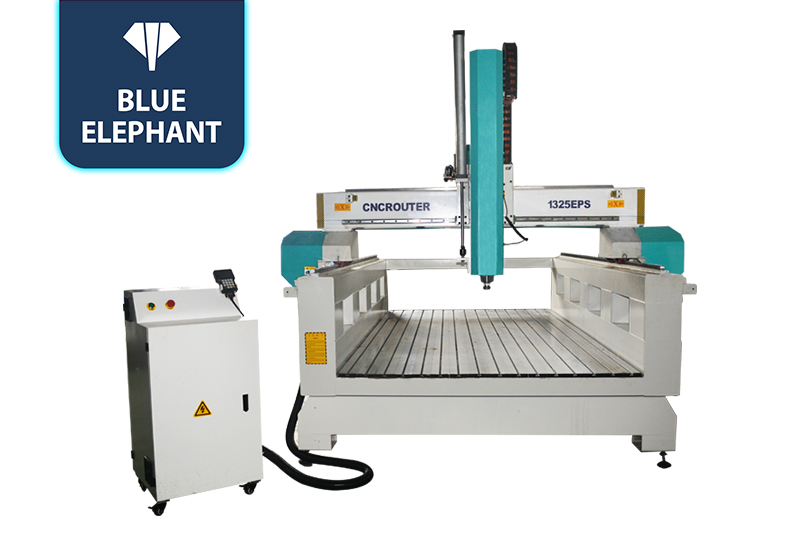

1325 EPS Foam CNC Router Machine For Cheap Sale
☆Most popular eps foam cnc router machine. Using various famous and high-quality components, it has the characteristics of high precision, good cutting effect, high stability, high efficiency, stable machine operation and long service life.
CNC Router Machines Video
features
- DSP A11 control system is very convenient and simple.
- It has an effective workbench size of 1300x2500mm.
- All accessories are from international famous brands.
Parameters
| Description | Parameter |
| X,Y,Z Working Area | 1300x2500x700 mm |
| Frame | Divided structure bed structure ,Fixing with screws |

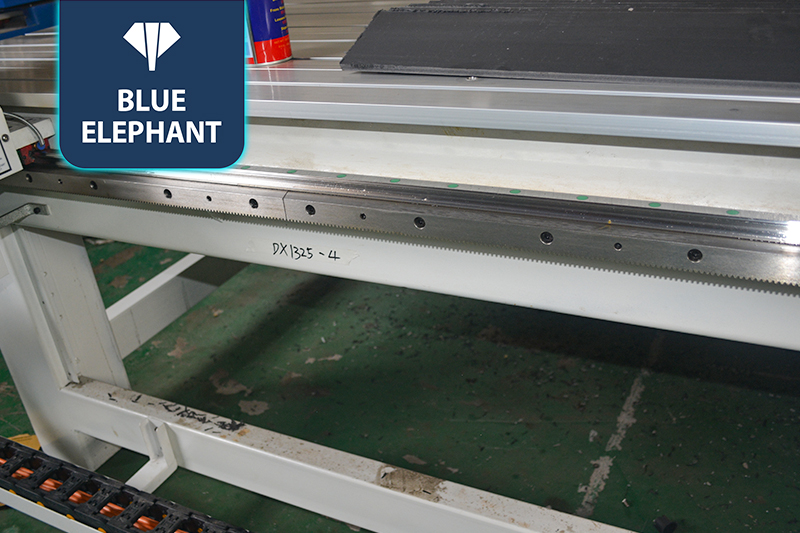

| X,Y Structure | Helical rack gear , 4pcs HIWIN #30 Linear guide |
| Z Structure | TBI ball screw,6 pcs slider for z axis |
| Max. Power Consumption | (Without Spindle) 6Kw |
| Spindle Power | Italy HSD spindle 7kw |
| Spindle Speed | 0-18000RPM |
| Drive Motors | Japan 1.5W YASKAWA |
| Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |

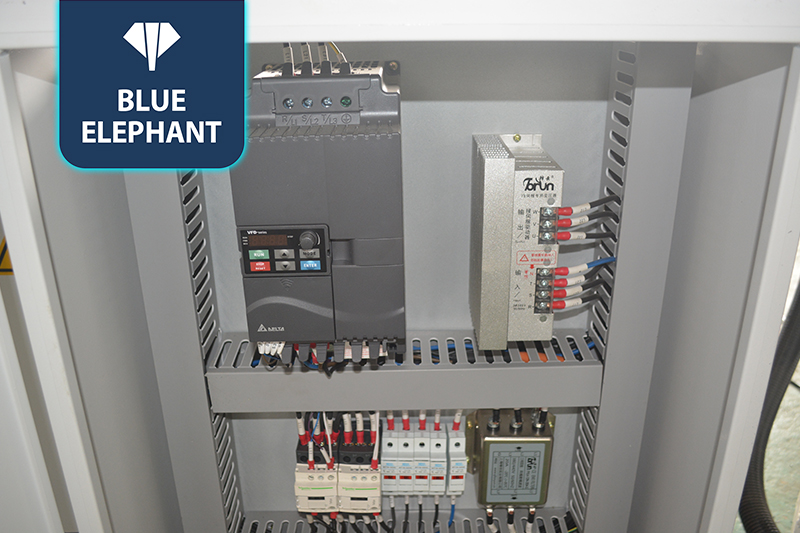

| Inverter | E-type 7.5kw Taiwan Delta Inverter |
| Operating System | DSP A11 |
| Computer Interface | USB |
| Flash Memory | 512M |
| Collet | ER32 |
| X,Y Resolution | <0.01mm |
| Software Compatibility | UG,Power mill |
| Running Environment Temperature | 0 – 45 Centigrade |
| Relative Humidity | 30% – 75% |
| Command Language | G Code |
Application
Mold industry: This machine can carve various large non-metal molds, especially suitable for automobile foam molds and wooden molds. Also suitable for precision manufacturing of moulds.
Musical instrument industry: This machine can carve large 3D curved musical instruments.
