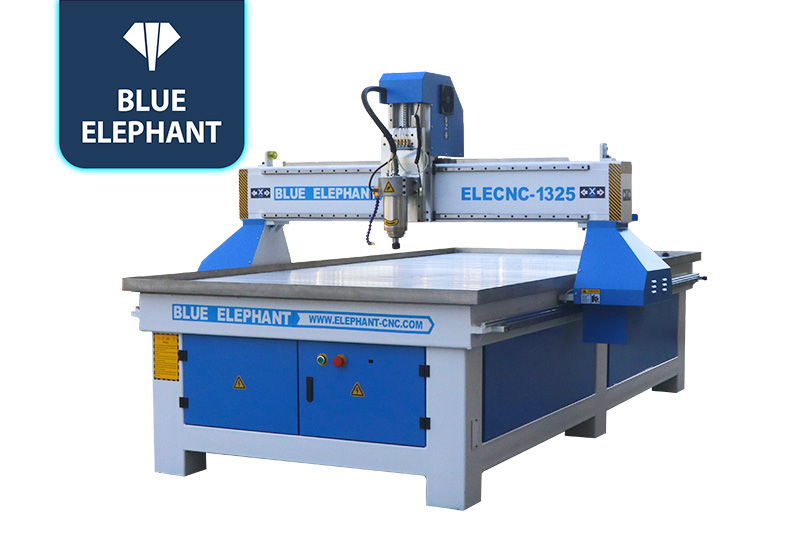

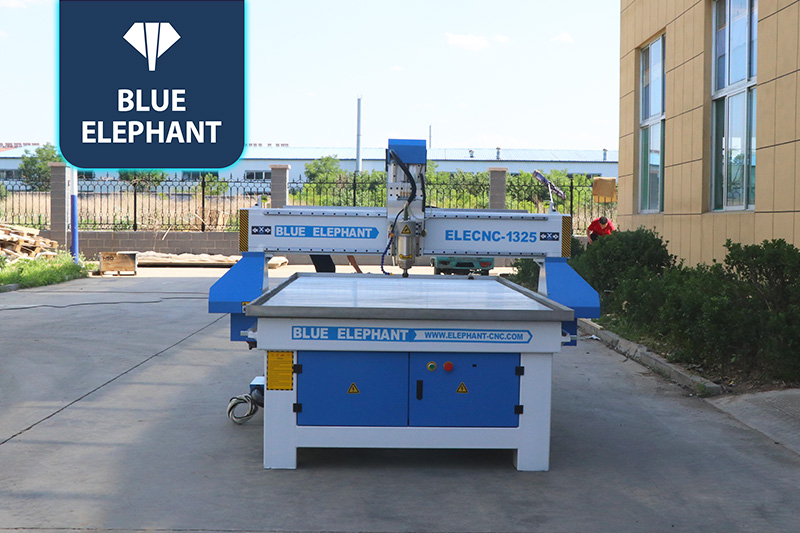

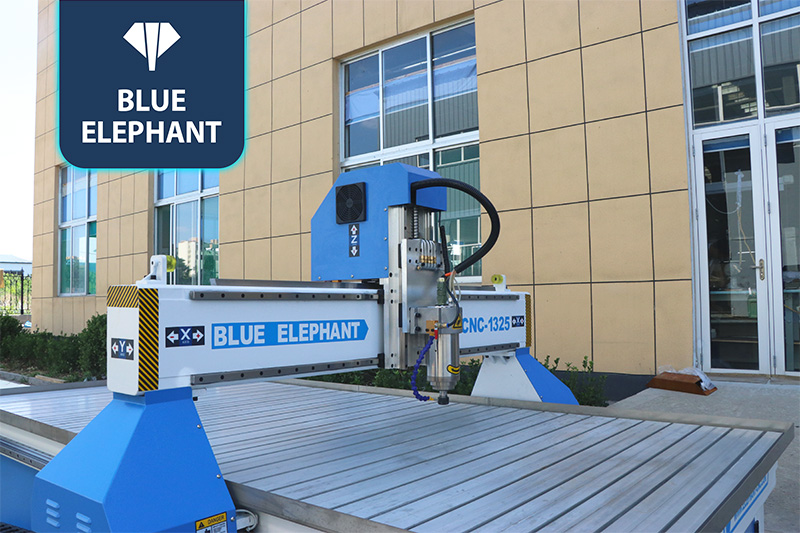

Best Purchase Furniture C and C Wood Machine for Sale
☆This 3-axis CNC router is mainly used for processing most non-metallic materials, such as wood, acrylic, MDF, rubber, glass, plywood, etc.
CNC Router Machines Video
Features
- Water cooling spray can better cool the spindle.
- The aluminum T-slot table with sink is also suitable for cutting and carving stone.
- Heavy-duty welded steel frame ensures greater stability and increases machine life.
Parameters
| Model | ELECNC1325 3 Axis |
| X,Y axis travel | 1300x2500mm, option:1500*3000mm;2000*3000mm;2100*4000mm,etc |
| Z axis travel | 200mm, option:300mm |
| Spindle type | 3kw water cooling spindle, ER20 |
| Inverter type | 3.7kw Fuling inverter |
| Control system | Mach3 control system |
| Driving system | Stepper 450B and Leadshine 860H drivers |
| Machine structure | Heavy duty welded steel frame |
| Work table | Aluminum T-slot working table with water sink |
| Cooling system | Water cooling spray |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool Calibration | Manual tool sensor |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible Software | Artcam, Aspire,etc |
| Command Language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-15m/min |
| Re-positioning accuracy | ±0.05mm |
| Working Accuracy | ±0.05mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
Application
Woodworking engraving machines are widely used not only in the field of woodworking, but also in advertising, handicrafts, handicrafts, molds, electronics, construction, printing and packaging, decoration, tombstones, crystal products and other industries.
