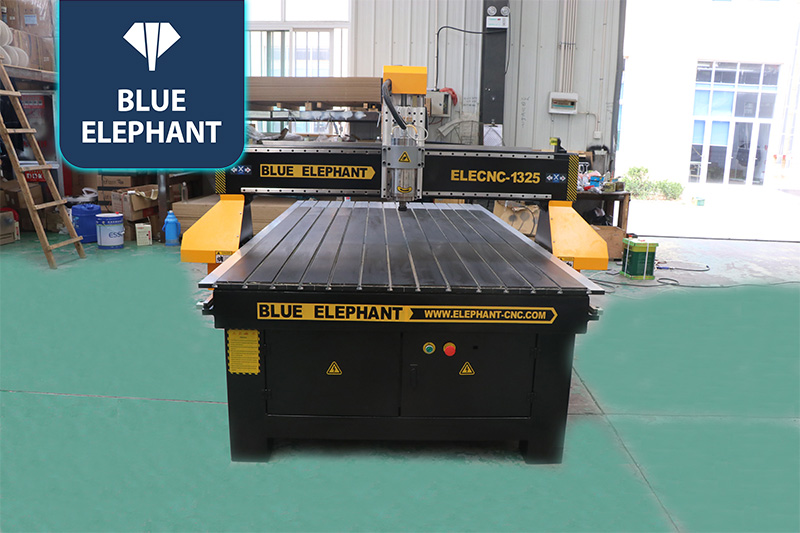

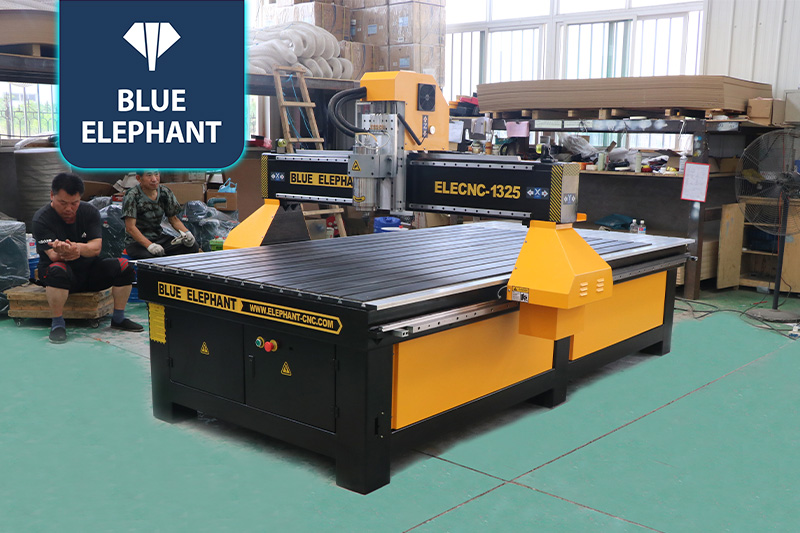

Low Cost 3 Axis CNC Router Selling At Affordable Price All Over The World
☆With various processing sizes, very affordable price, good quality and high machine stability, it is the best-selling 3-axis CNC milling machine in Jinan, China.
CNC Router Machines Video
features
- Equipped with CS water-cooled spindle, the engraving is more powerful, faster, and does not hurt the machine.
- The easy-to-use Mach3 control system makes it easy for workers to get started.
- With heavy-duty frame and gantry, the machine has higher machining accuracy and stability.
Parameters
| X,Y,Z Working Area | 1300*2500*200mm |
| Working Area | 1300*2500mm |
| Working Voltage | 380V/3PH/50Hz |
| Control System | Mach3 control system |
| Spindle | CS water cooling spindle |
| Spindle Speed | 0-24000RPM |
| Inverter | Fuling inverter |
| Drive Motors | FL118 Motor and YAKO 2811 |
| Frame | New Type Heavy Duty Body |
| Lubrication | Manual Lubrication System |
| Gantry structure | Steel Gantry |
| Spray/ Flume | Automatic Oil Mist Cooling |
| X, Y Structure | ABBA/PMI 20# Guide Rails |
| Z Structure | TBI Ball Screw Ball Screw Transmission |
| Tool Sensor | Automatic Tool Sensor |
| Limited Switch | Soft limit switch |
| Software | Artcam software |
Application
Wood: natural wood, plywood, soft wood, hard wood, fiberboard, particle board, melamine board, LDF, MDF, chipboard.
Plastic and rubber: acrylic, ABS, HDPE, PVC, LDPE, UHMW, resin, double-colored board, PP, EVA.
Stone: granite, marble, slate, basalt, pebbles, ceramic, porcelain, natural and artificial stones.
Soft metal: aluminum, brass, copper, mild steel.
Composite: aluminum plastic composite, copper composite, titanium composite, zinc composite.
