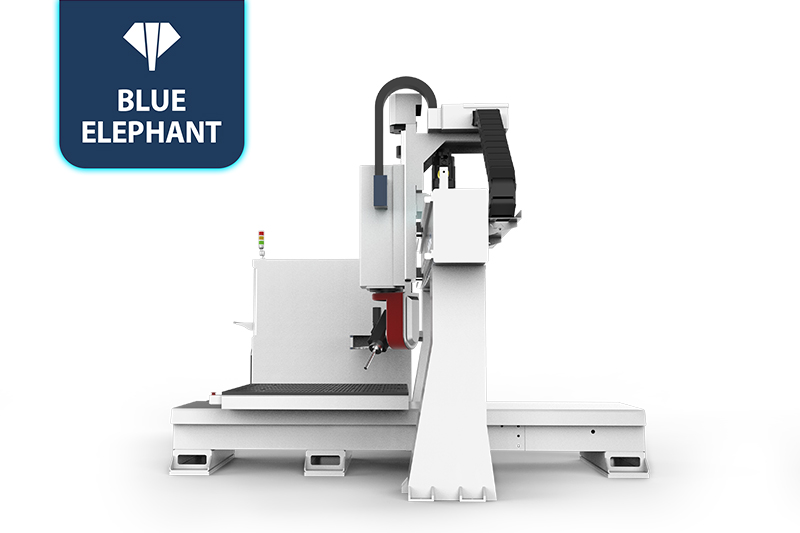

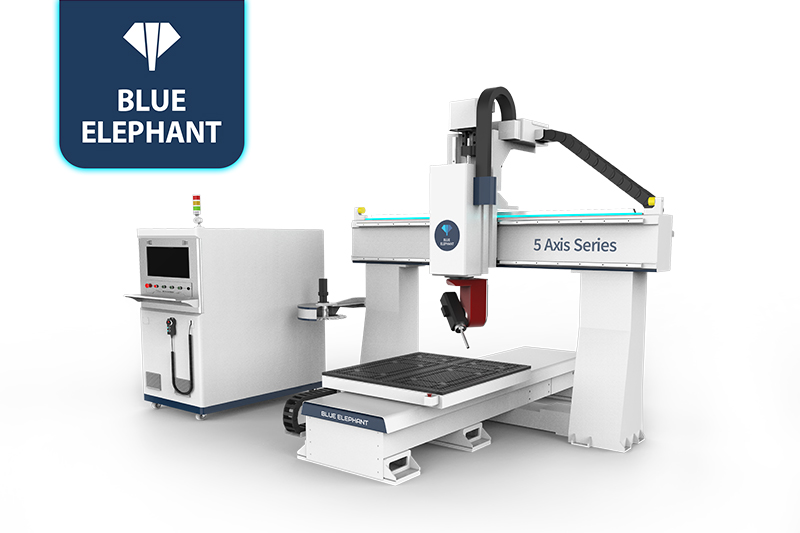

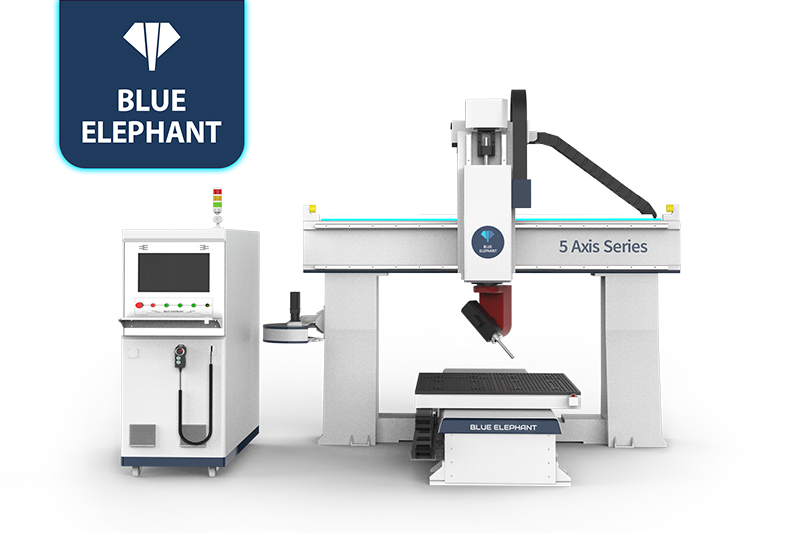

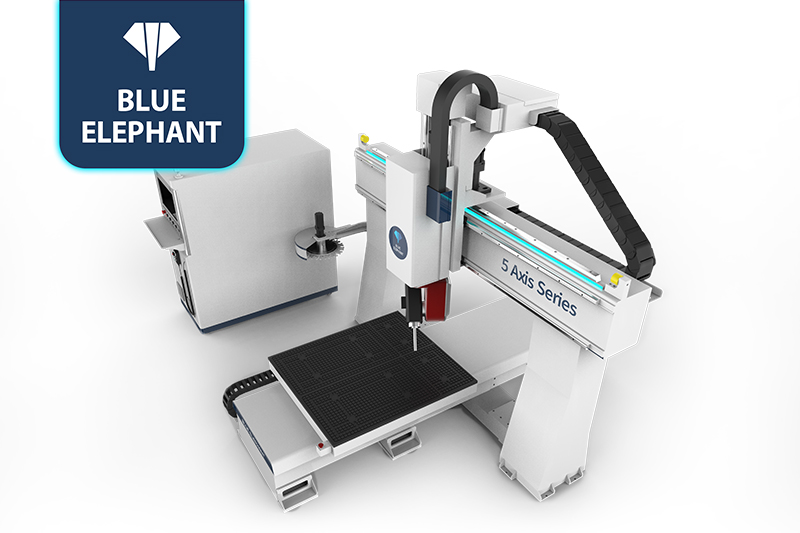

Buy Single Table 5 Axis CNC Machining Center at Cost

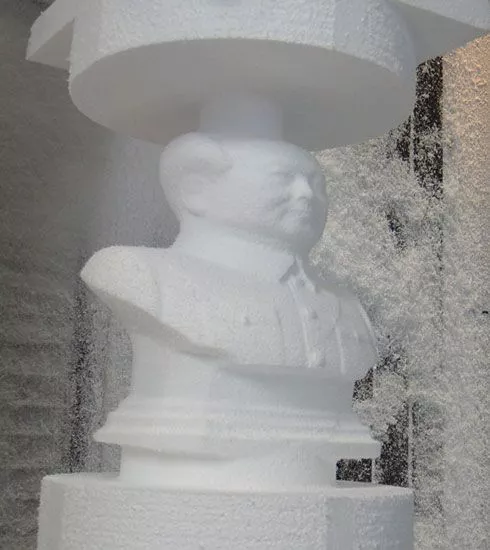

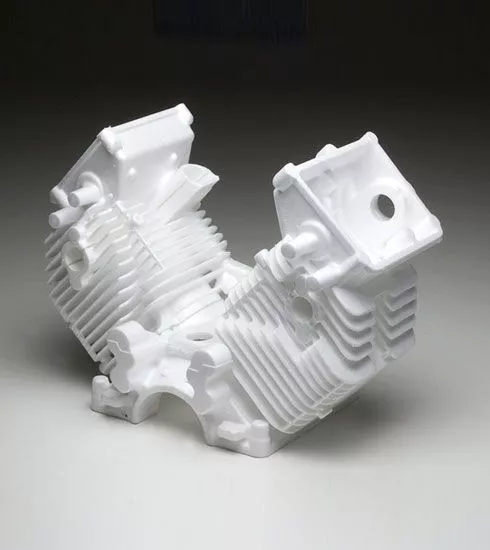

☆Entry-level 5-axis CNC machining center. Good at engraving various 3D molds, statues, etc.
CNC Router Machines Video
Features
- It can engrave a variety of non-metallic materials and soft metal materials.
- 5 Axis CNC router has an swing spindle. It can change the direction automatically during the machining process without stopping.
- Using world-renowned components to ensure high processing quality.
- Equipped with a turntable tool change magazine, which can automatically change tools, improve work efficiency and save labor.
Parameters
| Model | ELECNC-1212 |
| X,Y axis travel | 1200x1200mm, option: 1300*2500mm; 1500*3000mm; 2000*3000mm, etc |
| Z axis travel | 800mm |
| Spindle type | 10KW Hiteco water cooling ATC spindle |
| Inverter type | 15kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Carousel type auto tool changer |
| Tool holder with collet | HSK tool holder |
| Control system | Syntec 610MA-E5 |
| Driving system | 1300W Japan YASKAWA servo motor and driver |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2,Y3) |
| Linear guide | Taiwan #30 Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan TBI 3210/4040 ball screw Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Semi-auto lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Customized professional 5 axis software |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 380V 3PH 50HZ/ 60HZ |
Application
Five-axis CNC routing and milling machines are widely used in furniture, advertising, molds, decoration, construction and other fields and industries. In terms of functionality, it can cut, engrave, drill, mill and groove.
