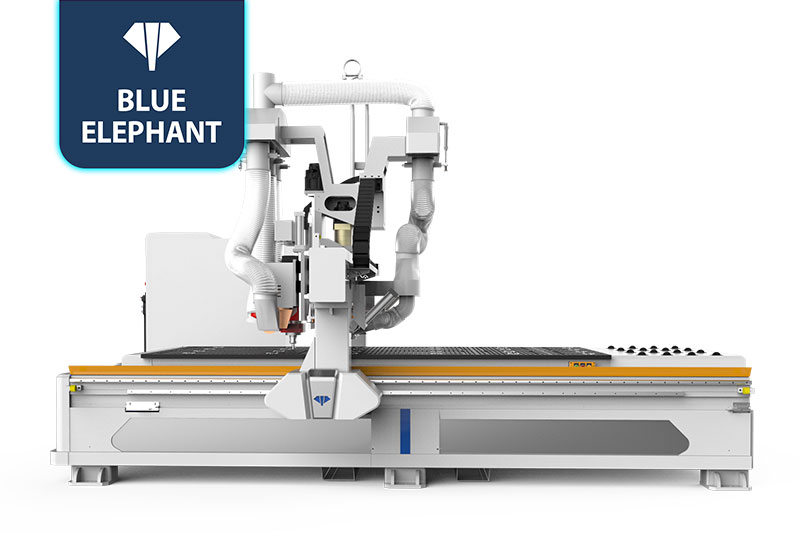

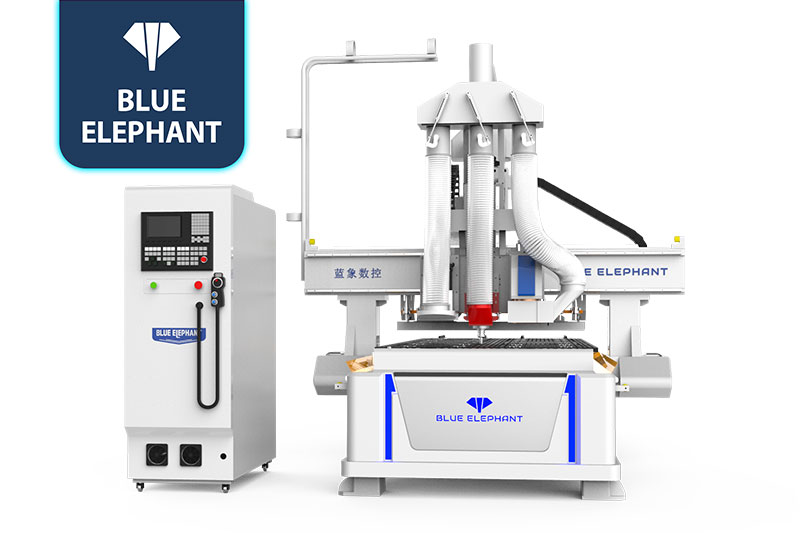

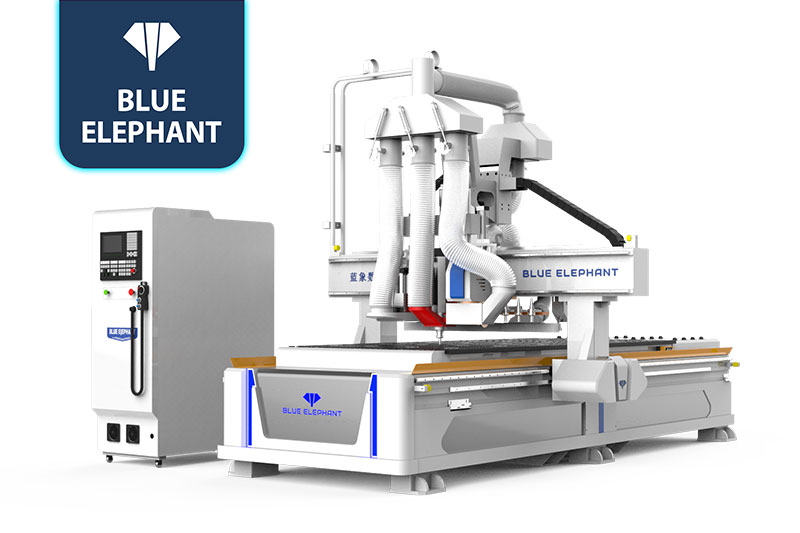

Best CNC Nesting Machine Wood CNC Machine With Drill Bank
☆This is the best CNC engraving machine for a cabinet maker because it can perform multiple functions such as cutting, engraving, drilling and grooving invisible connectors in one machine.
Features
- It is equipped with three spindles to meet the needs of customers’ production.
- Optional automatic loading and unloading platform to save labor costs.

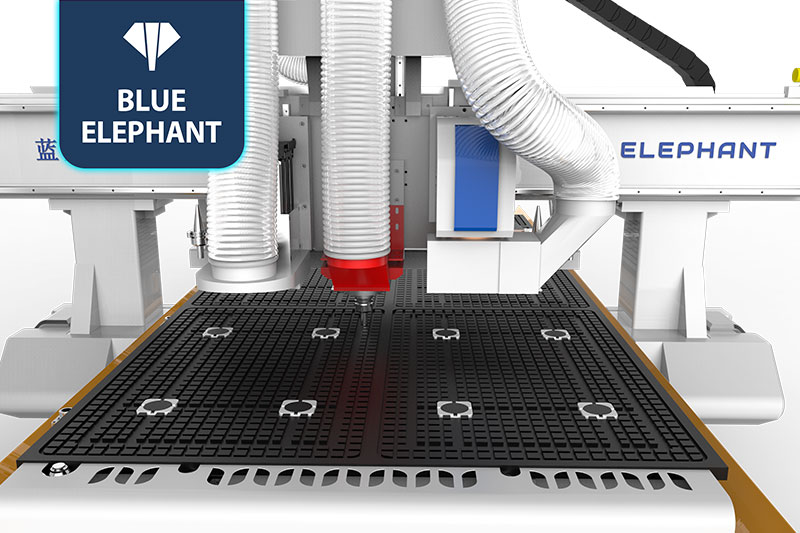

- The T-slot and vacuum table can hold the board firmly on the table, avoiding slipping and moving during the cutting process.
Parameters
| Product Name | Nesting CNC router |
| Color | White |
| Voltage | 380V/50HZ |
| Control system | LNC 2200 |
| Spindle | 9kw HQD air cooling ATC spindle with special saw blade spindle for Lamello |
| Invert | Hpmont Invert |
| Motor and Driver | Leadshine 1300W servo motor + NEWGEAR reducer |
| Frame structure | New type Square tube |
| Reducer | NEWGEAR Reducer1:5 |
| Working Table | T-slot &vacuum working table（6 zone） |
| Lubrication system | Automatic lubrication |
| Positioning cylinder | Y3+X2 |
| Tool sensor | Auto tool |
| Chassis | Rittal |
Application
Woodworking industry: very suitable for furniture decoration, wooden crafts, solid wood furniture, wooden composite doors, cabinets, bedside tables, etc.
