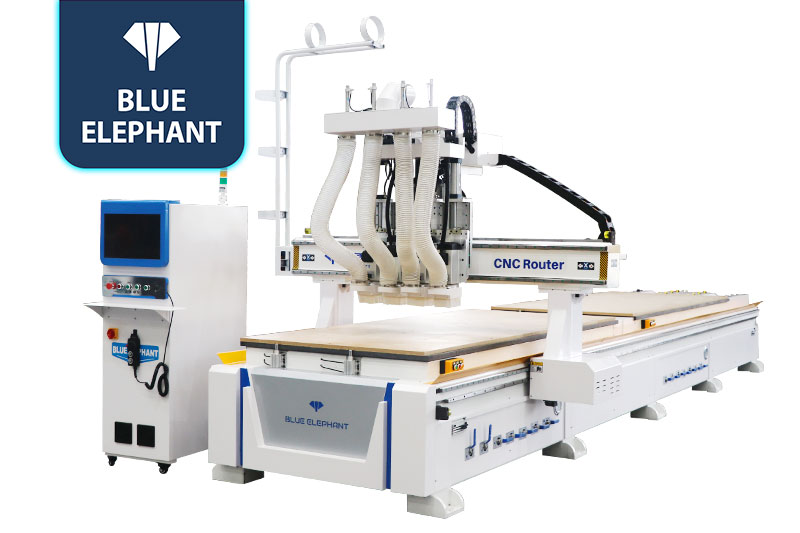

Pneumatic Multi-axis CNC Router at an Affordable Price

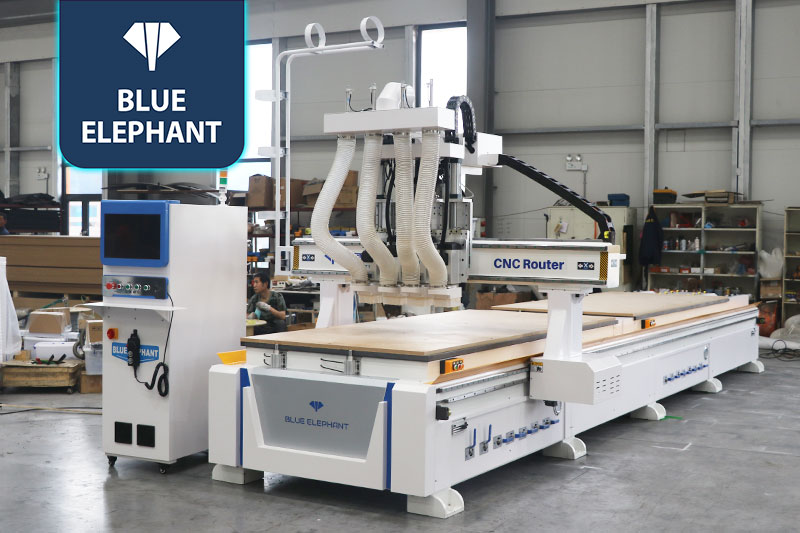

☆This woodworking CNC router has 4 spindles, each of which can carry a type of CNC tool. In addition, two work stations increase work efficiency.
Features

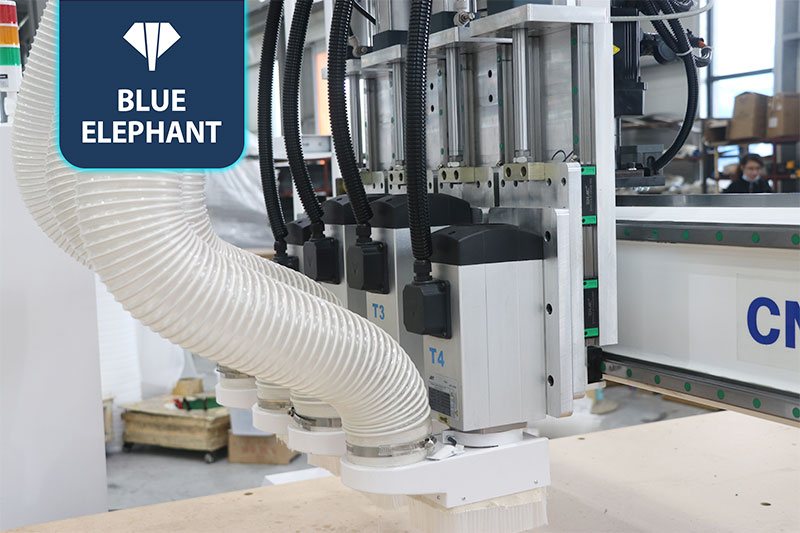

- This woodworking CNC machine is equipped with four spindles. It can realize quick tool changes in the process of processing, which greatly improves the efficiency of processing.

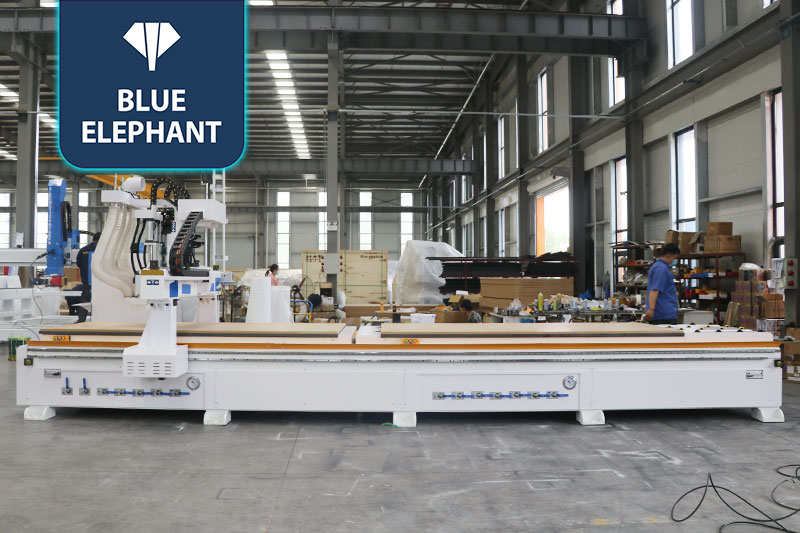

- Two worktables can realize loading and unloading wood boards at the same time.
- The heavy-duty mechanical structure ensures good stability in the long stroke of the Y-axis and a longer service life of the machine.
Parameters
| Descriptions | Parameters |
| Product Name | 1325 Bi-Zone Pneumatic 4 Spindles CNC Router Machine |
| Model | ELECNC-1325-4S |
| Travel Size | 1300*6000*200mm |
| Working Size | 1300*2500*200mm (bi- zone) |
| Table Size | 1200*2440*200mm (bi- zone) |
| Working Voltage | 380V, 3Ph, 50Hz (200V for option) |
| Frame | 10-12mm New type thicker and bigger heavy duty welded frame and gantry |
| X,Y,Z Axis Rail | Taiwan PMI linear square rail |
| X,Y,Z Axis Trasmission | Helical rack for X,Y axis and Taiwan TBI ball screw for Z axis |
| Control System | Taiwan LNC control system |
| Spindles | HQD air cooling spindles |
| Spindle Speed | 0-18000rpm/min |
| Motors and Drivers | Taiwan Delta servo motors and drivers |
| Table Surface | Vacuum working table with 4 zones for each working area |
| Lubrication System | Semi-automatic lubrication system |
| Limit Switch | Japan OMRON limited switch |
| Wire | High soft shield with copper wire to protect against static electricity |
| Tool Sensor | Automatic tool sensor |
| Positioning Cylinder | 12 sets |
| Dust Collector | New type double bags dust collector |
Application
Woodworking industry: very suitable for furniture decoration, wooden crafts, solid wood furniture, wooden composite doors, cabinets, bedside tables, etc.
Decoration industry: art models, screen carving and cutting, gift packaging, electrical cabinet panels, sports equipment and other wooden industrial products.
