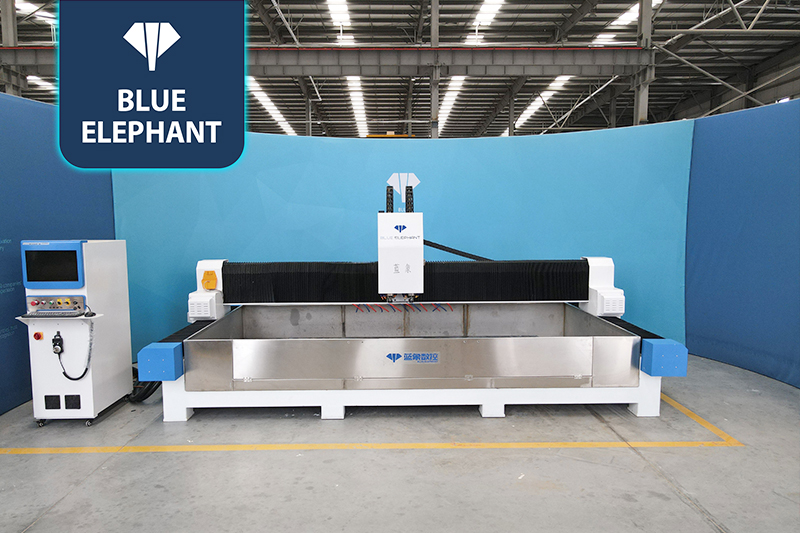

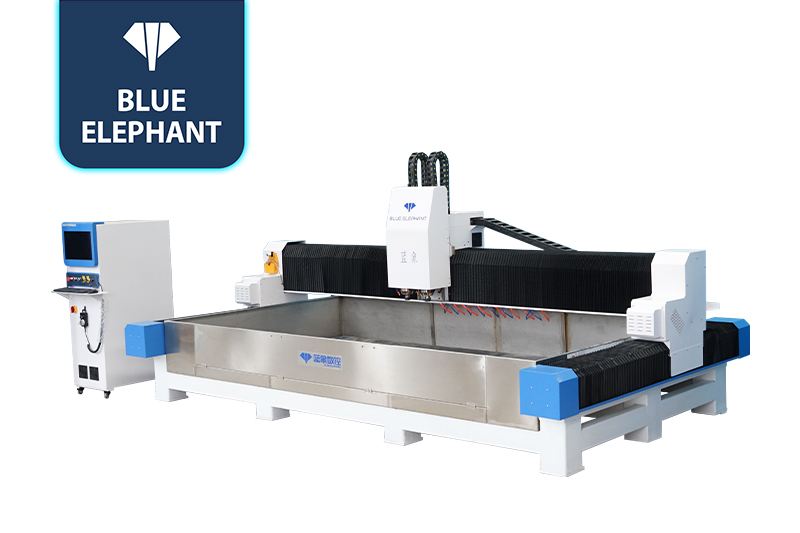

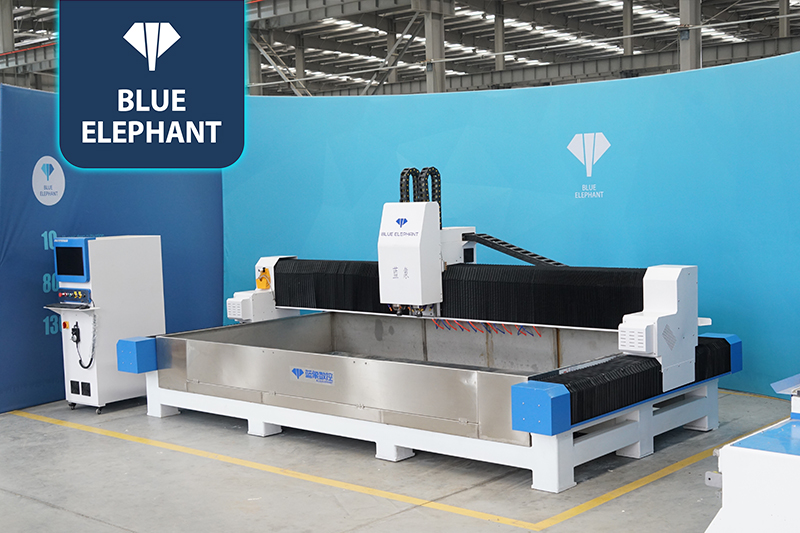

Best Two-process CNC Marble Machining Center for Sale
☆This CNC stone machining center is designed with two processes. Higher efficiency, low investment cost, high utilization rate, and other advantages.
CNC Machining Center Video
features
- It can help users realize different stone cutting, edging, polishing and carving.
- One-key switching between stone countertop edging and engraving is convenient and quick.
- It can realize fast tool change in 3 seconds, greatly improving work efficiency and saving labor.
Parameters
| Model | ELECNC1530 |
| X,Y axis travel | 1500*3000mm, option: 1300*2500mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm，etc |

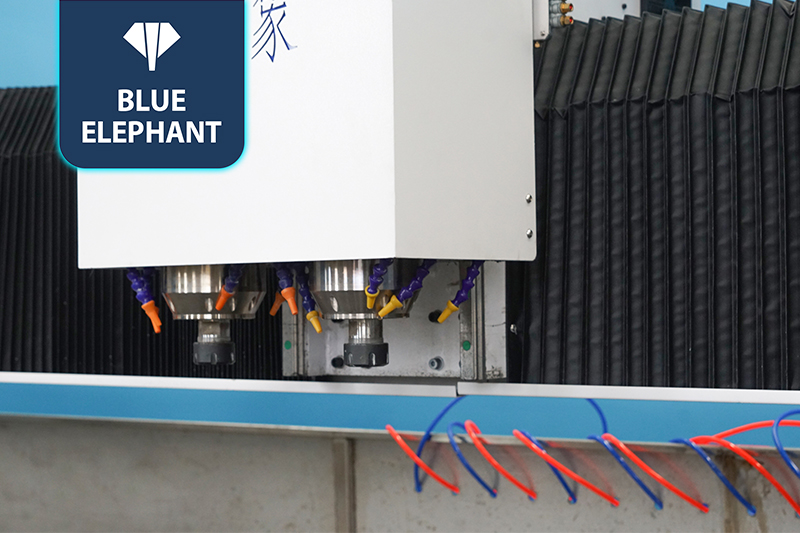

| Spindle type | 5.5kw water cooling spindle*2, |
| Inverter type | 5.5kw inverter |
| Control system | Weihong 95A-3L controller |
| Driving system | 1.5kw servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Stone special working table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Autotool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Command Language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-30m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/ 3PH 50HZ/ 60HZ 380V 3PH 50HZ/ 60HZ |
Application
Processing materials:
Quartz countertop processing center is mainly used for processing quartz stone, marble, granite, and so on.
application:
Kitchen countertops, stone coffee table tops, basin hole cutting, bathroom countertops, background wall carvings, etc.
