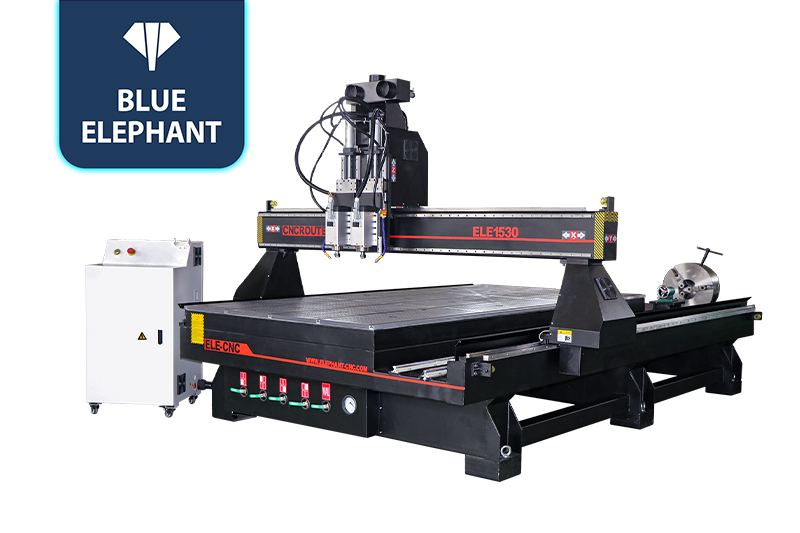

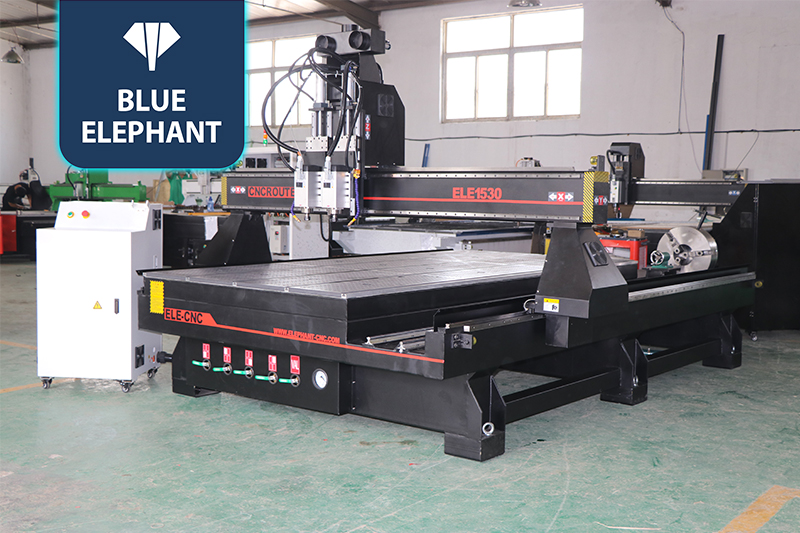

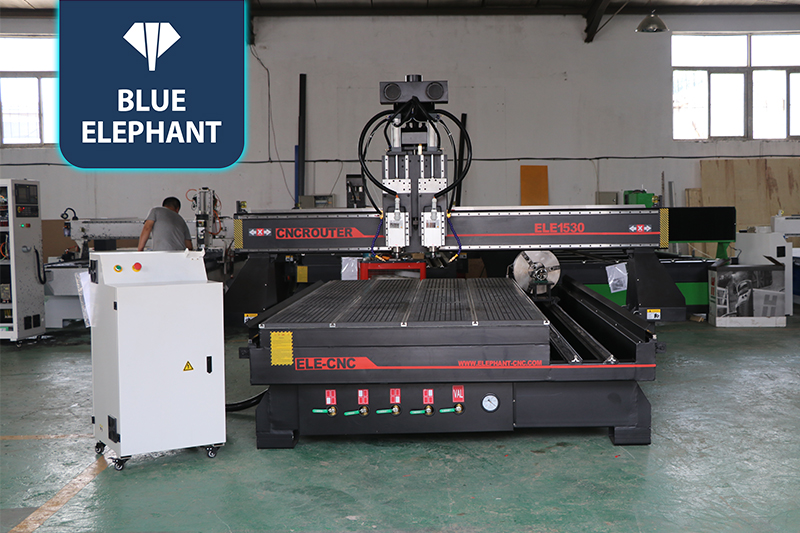

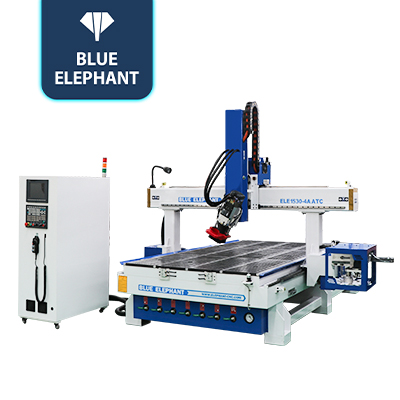

Multi-axis 4th-axis CNC Milling Machine for Woodworking
☆This custom CNC woodworking machine is equipped with two spindles and a rotary unit. It can realize the processing of complex workpieces. The main components are all famous brand or high-quality products.
4 Axis CNC Router Machines Video
Features

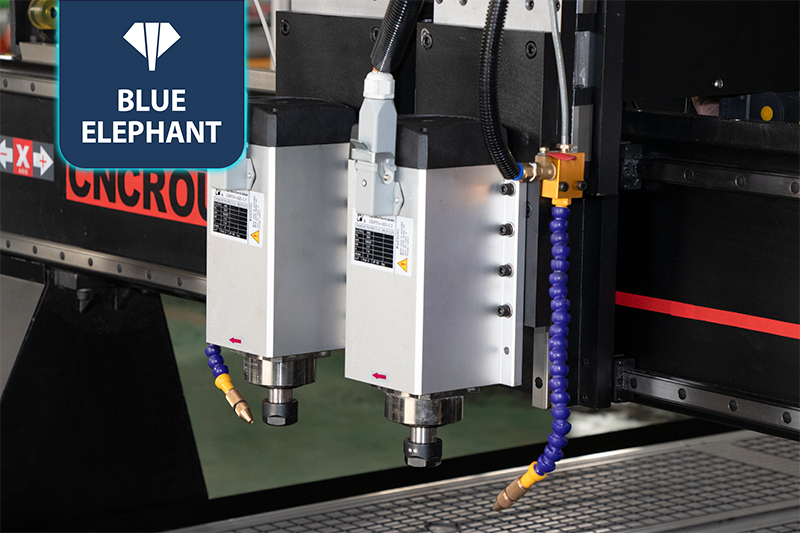

- It is equipped with two spindles that work together for mass production.
- A rotary device facilitates engraving cylindrical workpieces.
- The specifications of this CNC milling machine can be customized to meet the different processing needs of customers.
Parameters
| X,Y,Z Working Area | 1500x3000x400mm |
| X,Y,Z Traveling Positioning Accuracy | ±0.03/300mm |
| X,Y,Z Repositioning Accuracy | ±0.03mm |
| The 4th axis | ±90° |
| Table Surface | Vacuum&T-slot Table |
| Frame | Welded Structure, heavy-duty T-structure |
| X, Y Structure | Helical Rack gear, Taiwan Hiwin/PMI Rail Linear Bearings |
| Z Structure | Taiwan TBI Ball Screw Taiwan Hiwin/PMI Rail Linear Bearings |
| Transmission | X, Y rack & pinion drive, Z ball screw Transmission |
| Max. Rapid Travel Rate | 45000mm/min |
| Max. Working Speed | 30000m/min |
| Spindle Speed | 18000rpm |
| Spindle Power | 4.5kw Italy HSD air cooling spindle |
| Working Voltage | AC 380V/50/60Hz,3PH or AC 220V/50/60Hz |
| Motor Drive | 1000w YASKAWA servo motor servo driver from Japan |
| control System | SYNTEC 4 axis control system |
| Software Compatibility | Type3 , Artcam ,UGS ,UcancamV9 |
| Running Environment Temperature | 0 – 45 Centigrade |
| Inverter | 5.5kw Delta inverter |
Application
Wooden furniture industry: corrugated board, antique furniture, wooden doors, screens, craft windows, composite doors, cabinet doors, sofa legs, headboards, etc.
Advertising industry: advertising logo, advertising production, acrylic engraving and cutting, spray molding and other advertising material derivatives production.
Mold industry: There are metal molds such as copper, aluminum, and iron, and non-metal molds such as artificial marble, sand, PVC pipes, and wood boards.
